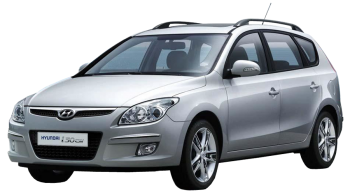

HYUNDAI i30 CW · 1.6i CVVT ActiveVersion · Wagon · 2008 ‐ 2010

Manufacturing version 1.6i CVVT ActiveVersion of auto models i30 CW was started in 2008 by Hyundai, and lasted until 2010. The weight of the car is 1.2 tn and a length of 4.5 m, It is formed as wagon with five doors, and can be fit in 5 person including the driver.

«i30 CW 1.6i CVVT ActiveVersion» automobile with a 5-speed manual transmission is fitted to the front-wheels. 4-cylinders petrol engine with «multipoint injection system» can produce power 122 hp at 6200 rmp, which allows you to speed up the car in 11.1 seconds to 100 km/h and get ceiling speed of 192 km/h.

Fuel consumption is 8 liters in the city driving mode, on the suburban 5.2 liters, and the normal fuel rate is 6.2 l per 100 km. Tank volume is 53 liters of petrol, what lets to drive approximately 855 kilometers without refueling.

The forward wheels of this vehicle have ventilated disks brakes and attached to the undercarriage using suspension type «MacPherson, independent, coil springs» and equipped sway bar. Rear wheels have disks brakes and attached to the chassis with help of suspension type «Multilink, coil springs» and equipped with stabilizer bar. Tires have the next measure - 195/65R15.

In conformity with the information of Euro NCAP crash test, this model of Hyundai i30 CW received the maximal number of stars - five, which indicates that it is a very safe car. Furthermore to passive systems of safety (head/curtain, side, driver, passenger airbags), it is also equipped with active systems of safety such as ABS, EBD.

Specifications of Hyundai i30 CW 1.6i CVVT ActiveVersion

COMPARE THIS CAR

Common data
MakerHyundai Seriesi30 CW Model1.6i CVVT ActiveVersion Production year2008 ‐ 2010 Body typeWagonDoors number5Number of seats5FuelPetrolDriveFrontTransmission typeManualNumber of gears5

Performance
Maximum speed192 km/h
SIMILAR
Acceleration to 100 km/h11.1 seconds
SIMILAR
Fuel consumption     - average6.2 l per 100 km
SIMILAR
    - in the city8 l per 100 km    - on the highway5.2 l per 100 kmFuel tank volume53 lAverage cruising range855 km

Chassis
Tire size195/65R15Front breaksventilated disksRear breaksdisks
Front suspension
MacPherson, independent, Coil springs
Rear suspension
Multilink, Coil springs
Front stabilizerYesRear stabilizerYesTurning radius10.2 m

Options
Frontal test impactRating: 5 of 5Airbags     - driver    - passenger    - side    - head / curtainABSEBDCentral door lockingElectric windowsPower steering

Exterior options
Rear privacy glassXenon headlampsAuto-switching of lightTurn signal in mirrorsHeadlight washersBurglar alarms
Engine
Volume1591 cc
SIMILAR
CylindersL4Valves4Valve operationDOHCPower122 hp (6200 rpm)
SIMILAR
Torque154 Nm (4200 rpm)
SIMILAR
Compression10.5 : 1Bore and stroke77,0 x 85,4 mmFuel systemMultipoint injectionCatalytic converterRegularEmissions of CO2152 g/km

Weights and loads
Curb weight1211 kg
SIMILAR
Max permitted weight1820 kg
SIMILAR
Max payload609 kgMax load on roof80 kgMax noseweight55 kgMax braked trailer mass1200 kgMax unbraked trailer mass550 kg

External dimensions
Length4475 mm
SIMILAR
Width1775 mm
SIMILAR
Height1520 mm
SIMILAR
Front track1546 mmRear track1544 mmWheelbase2650 mm
SIMILAR

Internal dimensions
Luggage volume415 - 1395 lFront seat length490 mmFront backrest length620 mmFront headspace955-1010 mmSeat - pedals distance875-1095 mmFront entrance height560 mmFront interior width1475 mmRear backrest length620 mmRear headspace1000 mmRear seat length475 mmRear seat - front seat average740 mmRear seat - front seat670-905 mmRear seat height355 mmRear interior width1465 mm

Interior options
Seats options:     - heigh adjustment    - rear headrests    - rear foldableCentral armrestOdometerCoolant temperatureNavigationRudder adjustmentAudio systemAudio controls on rudderLamp for readingLight regulated panelTachometer
